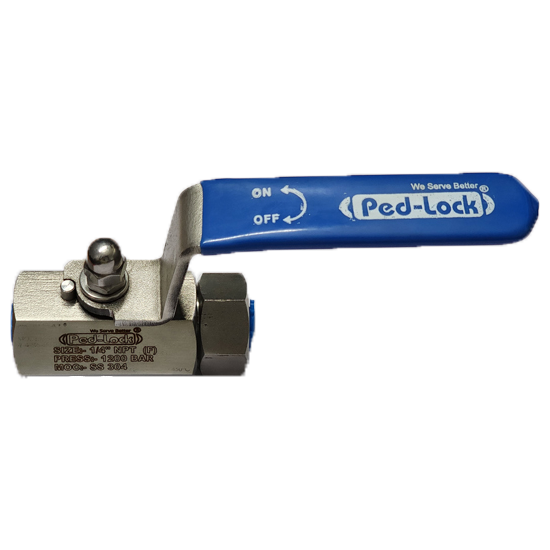

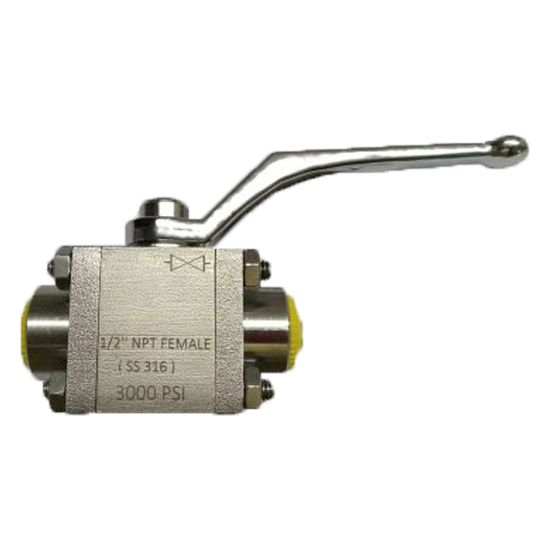

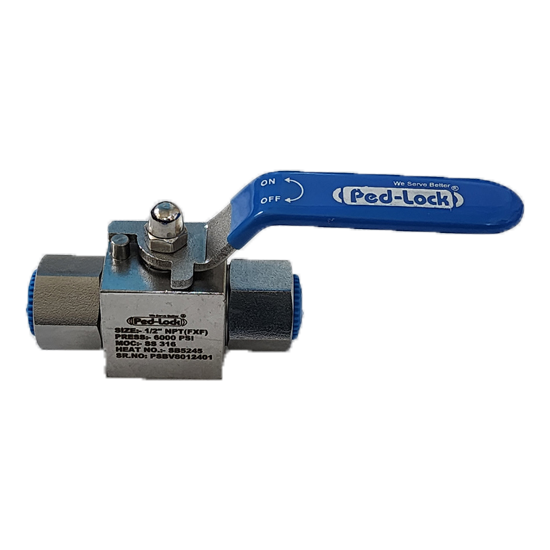

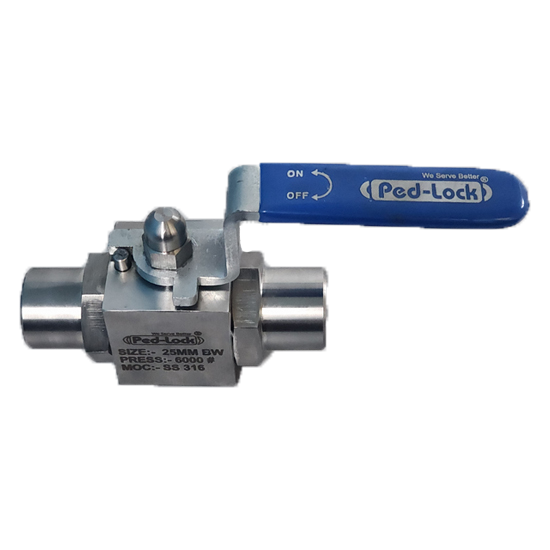

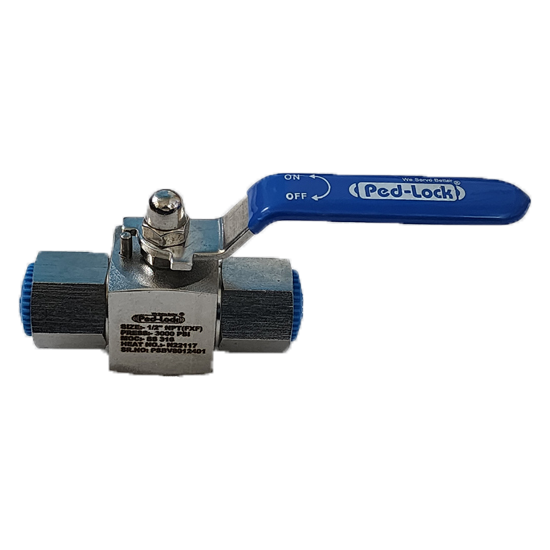

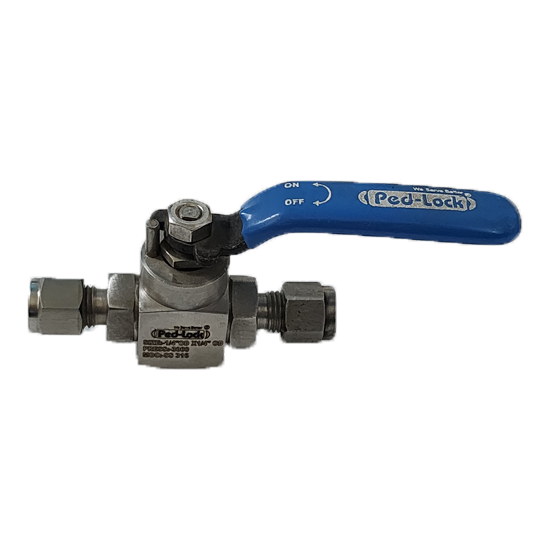

Square Body Ball Valve 3000 PSI to 10000 PSI

Square Body Ball Valve 3000 PSI to 10000 PSI

We have a wide range of Square Body Ball Valves 3000 PSI to 10000 PSI in carbon steel, stainless steel, and brass. The tube sizes of this Square Body Ball Valve start from ¼” to 2” and are available ex-stock with us. Large sizes can be custom-made as per your needs. Pressure ranges from 3,000 psi to 10,000 psi.

We ped lock valves are the renowned Square Body Ball Valve Manufacturer & Exporter from Ahmedabad. Our range of Square Body Ball Valves 3000 PSI to 10000 PSI includes 2-way, 3-way and 4-ways designs. We Manufacturer Ball Valves, That is available in a variety of end connections and also include flange end connections from 1. 5” and above which conform to sea and cetop standards. Our standard Ball Valves come with nitral or viton seal but we can offer Teflon seals as well.

Rating Up to 6,000 psi @ up to 600ºF
Stem & Body Seal ‘O-ring (Nitral & Viton)
Seat Packing Ptfe & Peek
Tube Size 1/4” to 2”
Connections Threaded
Body Bar Stock & Forged Steel
Pressure Rating 400 kg/cm2
Material SS, CS, and other Material Other as Per Your Requirements

Application

  • Chemicals industry
  • Food Fats and fertilizer industry
  • Ship building
  • Construction industry

Physical Features

  • Pressure rating 400 kg/cm2

Testing

  • For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
  • Working pressure: 6000 psi (431 bar)

Hydro Tests

  • Performed with pure water at 1-1/2 times of the working pressure.
  • Other tests like helium, seismic are available upon request.

Key Features

  • SS 316 construction for corrosion resistance, full or reduced bore for excellent flow. Peek/delrin seat for better performance.
  • Ball hard chrome plated for smooth operation.
