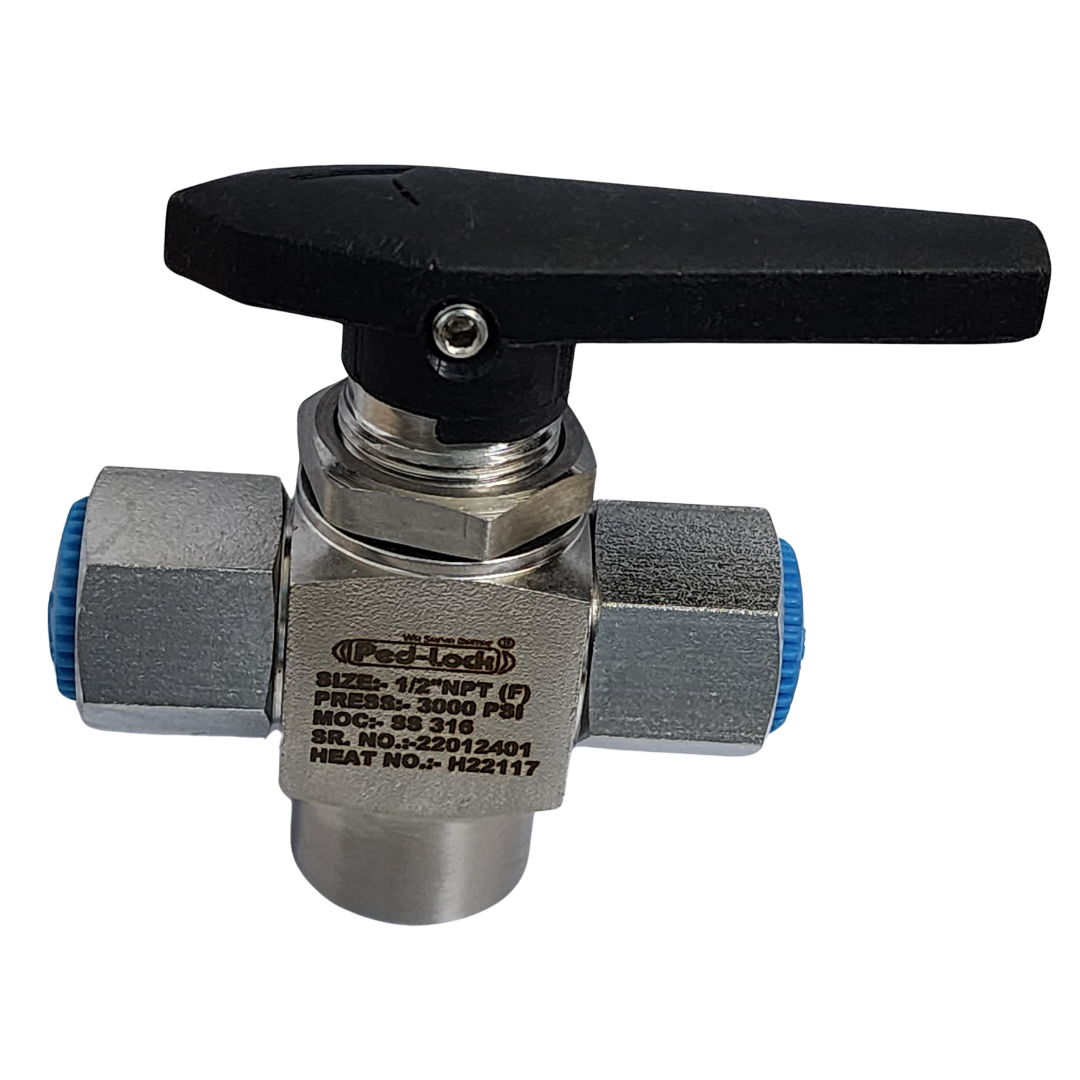

Panel Mounting Female 3 Way / 2 Way

Panel Mounting Female 3 Way / 2 Way

Ped Lock is the renowned Manufacturer of 2 Way / 3 Way Female Panel Mounting Ball Valve. Panel Mounted Ball Valve In this design steam and ball work as a single unit. The ball is supported by two floating or spring-loaded seats that remain in constant contact with the ball. Trunnion ball design required a lower operating torque. Hence, reduces the size of the actuator and the overall costs of the valve.

We are an eminent manufacturer and supplier of a comprehensive spectrum of Panel Mounting THREE WAY / TWO WAY Ball Valve to our respected clients. These fittings are made out of grade-A raw material that was acquired from trusted sources in the market. And, we also use advanced technology machinery to shape and design these products with the help of skilled fabricators. These offered Panel Mounting 3 Way Ball Valves find their use in a number of industrial and domestic applications. Moreover, customers are provided these fittings by us in varied specifications at most nominal prices.

Rating Up to 3,000 psi @ up to 600ºF
Stem & Body Seal ‘O’ring (Nitral & Viton)
Seat Packing POM & Peek
Tube Size 1/4” to 1”
Connections Threaded
Body Bar Stock & Forged Steel
Material SS, CS, and other Material Other as Per Your Requirements

Application

  • Chemicals industry
  • Food Fats and fertilizer industry
  • Ship building
  • Construction industry

Physical Features

  • Rating 210 kg/cm2

Testing

  • For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
  • Working pressure : 3000 psi (210 bar)

Hydro Tests

  • Performed with pure water at 1-1/2 times of the working pressure.
  • Other tests like helium, seismic are availbale upon request.

Key Features

  • SS 316 construction for corrosion resistance, full or reduced bore for excellent flow.peek/delrin seat for better performance.
  • Ball hard chrome plated for smooth operation.
